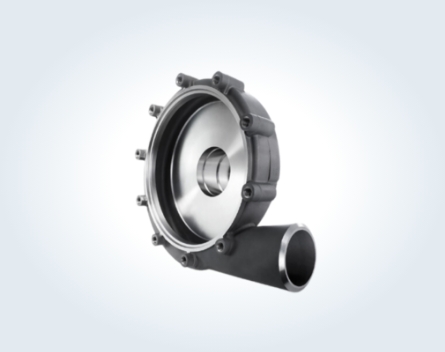

Stainless steel centrifugal pump with impeller housing – Fristam

A High-Pressure Centrifugal Pump for filtration Process

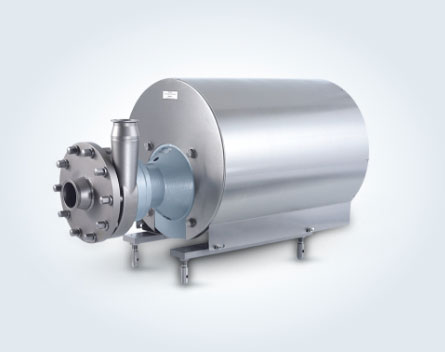

The Fristam FPH centrifugal pump is designed for processes that require high system pressures of up to 80 bar while maintaining hygienic operation and steady product flow. As an advanced development within the FP series, the FPH combines strong suction performance with suitability for both CIP and SIP procedures. This high-pressure centrifugal pump also features a hygienic construction that supports gentle product handling, reliable continuous operation, robust design and easier maintenance in demanding process environments.

The FPH can be integrated into existing process systems with minimal changes and is therefore well suited for applications where pressure and hygiene are both critical. It is used in several filtration processes such as Reverse Osmosis (RO) for high-pressure feed or recirculation, Ultrafiltration (UF) for product feeding and boosting and membrane filtration where higher feed pressure is needed. In evaporation processes with high system pressure, the pump also supports circulation and feed functions.

  • FPH centrifugal pump – Fristam
Pharmaceutical processes may include WFI and process water circulation, and biotech applications may include filtration related to fermentation and product circulation. Its hygienic design can also be beneficial for cosmetics and personal care processes. The selection of a pump in sensitive production environments is more than simply determining pressure capacity. Standards and certifications such as EHEDG and 3-A, along with compliance with current cGMP requirements, help reduce contamination risks. The Fristam FPH is built as a low-maintenance pump, helping support continuous operation with fewer maintenance interruptions.

Technical Specifications

  • 9 different sizes
  • System pressures up to 80 bar
  • Discharge pressures up to 13 bar
  • Flow rates up to 550 m3/h
  • Viscosities up to 800 mPa.s

Specific Construction

The Fristam FPH High Pressure Centrifugal Pump’s design combines open impeller design pump engineering with a flow-optimised pumping channel, ensuring gentle product handling even at high volumetric flows. The pumped medium may be homogeneous, contain air gases or suspended solids.

Application

FP/CP pump video – Fristam

Where FPH Centrifugal Pump Is Used?

Hygienic FPH Centrifugal pumps are used in various processes and applications such as membrane filtration setups, high-pressure filtration lines, booster applications, heat exchangers, pasteurizers, homogenisers and CIP skids and applications wherein high pressure centrifugal pumps are used wherever a process line needs more pressure than a standard hygienic pump can deliver. A dairy processing pump line uses it for high-pressure membrane filtration and concentration duties, while a food & beverage processing pump setup relies on it as a booster pump ahead of filtration systems. Pharmaceutical, biotechnology and cosmetics manufacturers pick it too, running it for sterile, high-pressure transfer duties where product integrity cannot be compromised. Add a proper CIP system pump cycle, and the same unit stays production-ready across shifts.

Salient Features

Industry Applications

Pump Configurator

Find the right pump solution for your job

Fristam Pumps provides a comprehensive tool for all pumping applications that you can use to select pumps and valves quickly and easily in a user-friendly configuration environment and find the optimal solution for your projects. No matter where you are in the pump recognition stage, Fristam can help you find the most appropriate one with our automated tool.
Click to Configure

FAQs

1. What makes the Fristam FPH suitable as a hygienic centrifugal pump?

The FPH is built around an open impeller design pump layout paired with a flow-optimised channel, which limits shear on the product even at high flow rates. That construction, combined with stainless steel wetted parts and CIP-friendly surfaces, is what qualifies it as a genuine hygienic centrifugal pump for sensitive process fluids.

2. Which industries typically specify the FPH centrifugal pump?

The FPH sees regular use across dairy processing pump applications, food & beverage industry pump duty, brewing & beverage pump work, chemical industry pumps service and personal care & cosmetics pumps operations. Its combination of hygiene and high-pressure capability suits any process line where product integrity and pressure both matter.

3. Is the Fristam FPH centrifugal high pressure pump available through a local distributor in India?

Yes. Fristam operates as a Fristam pump manufacturer with its manufacturing base in Chakan, Pune, and works with a Fristam FPH pump distributor India network to support plants nationwide. Buyers looking for an FPH pump supplier in India can reach out directly through Fristam's sales team for configuration and quotation support.

4. What sizes and performance ranges does the FPH high pressure centrifugal Pump cover?

The FPH high pressure centrifugal pump is offered in 9 different sizes, covering system pressures up to 80 bar, discharge pressures up to 13 bar, flow rates up to 550 m³/h and viscosities up to 800 mPa.s. This spread is broad enough that most plants sourcing from a centrifugal pump manufacturer India trusts can find a matching configuration without custom engineering.

5. What makes the FPH a dependable choice for high-pressure filtration and sensitive product transfer?

As a high-pressure pump up to 80 bar, the FPH is well suited to booster-pump filtration technology setups where pressure needs to remain steady throughout the cycle. Its heavy-duty pump construction and gentle product-handling design work together, so the pump withstands demanding duty while treating the product with care. Fristam Pumps India builds these units as part of its wider Fristam centrifugal pumps range, drawing on its standing as a stainless-steel pump manufacturer trusted for sanitary/hygienic pumps across regulated industries.
